Yamaha QL5 Digital Mixing Console

Description

Pure, natural sound and powerful processing

The QL5’s powerful Virtual Circuit Modeling (VCM) technology effectively captures various pieces of analog gear right down to their individual components (including models influenced by the 1176, LA-2A, and EQ-1A), injecting your mix with an abundance of authentic-sounding analog vibe.

Revolutionary Dan Dugan automatic mixer

The Yamaha QL5 comes armed with Dan Dugan Sound Design’s revolutionary automatic microphone mixing technology. This remarkable processor, which can be loaded into up to 16 channels simultaneously, lets you automatically optimize your microphone gain distribution for speech applications.

Link it up with built-in Dante networking

By utilizing the widely-implemented Dante networking protocol, the QL5 is able to interface with other Dante-compatible devices to create systems of just about any scale or complexity. Additionally, the QL5’s “Port to Port” feature allows its inputs and outputs to be used as elements in a larger system, providing you with unprecedented routing capabilities for front-of-house and monitor consoles.

Expand your system with mini-YGDAI slots

The Yamaha QL5 gives you plenty of opportunities for expandability, thanks to its mini-YGDAI expansion slots, which can accept more than 30 types of expansion cards. You can also connect multiple QL5s together via I/O cards such as the MY32-AE, to create powerful systems that offer massive channel counts.

Two-track recording and multitrack options

You can either make a 2-track recording straight to a standard USB flash drive (in MP3 format), or you can create a full-blown multitrack recording with Nuendo Live or your DAW choice via Dante. Multitrack recording is great for performing “virtual sound checks” when the band isn’t available, and for making professional recordings of your live shows.

Loaded with features and performance

Optimized for live sound, the QL5 provides you with up to 300 scene memories, up to 1000ms of delay on its inputs and outputs, ample EQ and dynamics processing, 32 DCA groups, eight mute groups, 12 user-defined keys, multiple user key sets, a 5-in/5-out GPI interface, and more.

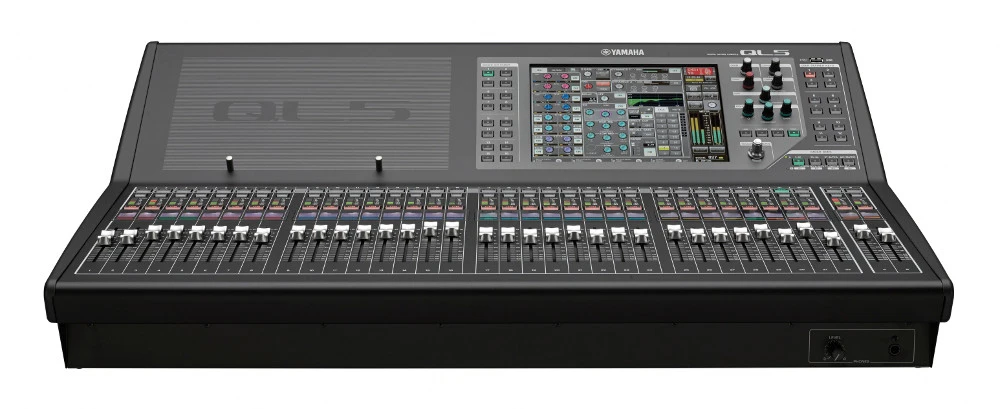

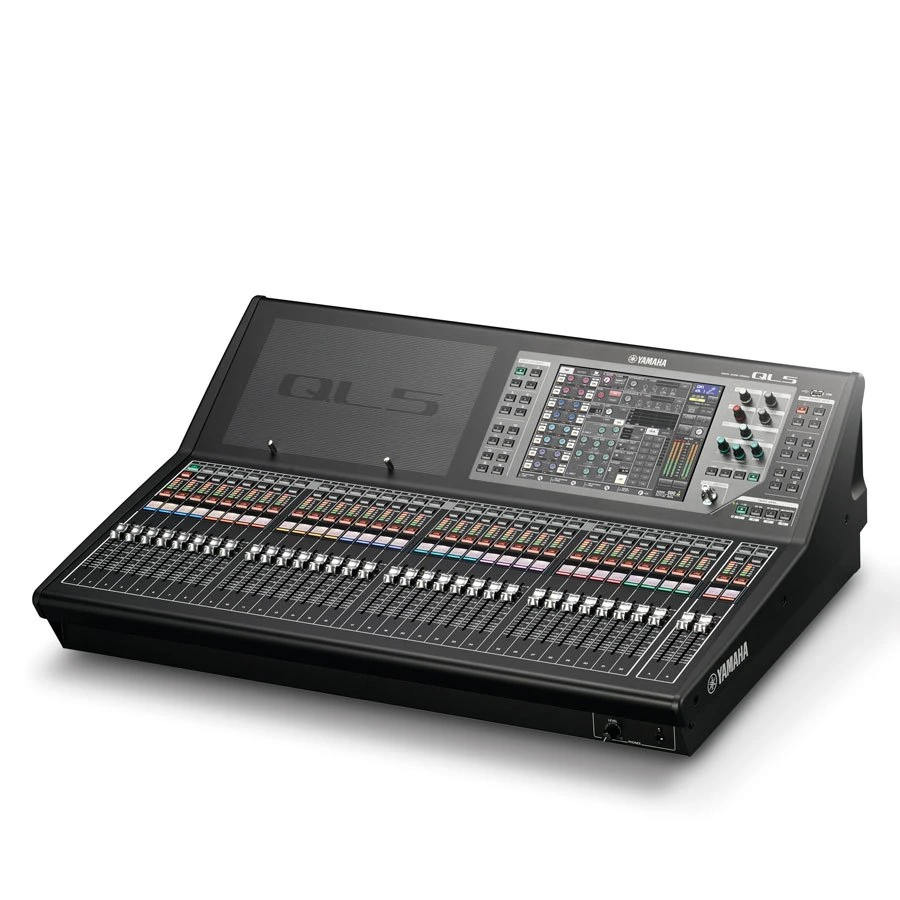

QL5 Digital Mixing Console

32 + 2 fader configuration adapts to a wide range of channel layouts. The QL5 is a compact console with large-scale capabilities.

• Mix channels: 64 mono, 8 stereo.
• Busses: 16 mix, 8 matrix (Input to Matrix supported).
• Local I/O: 32 in, 16 out.
• Fader configuration: 32 + 2 (Master).
• Stainless steel iPad support stays.
